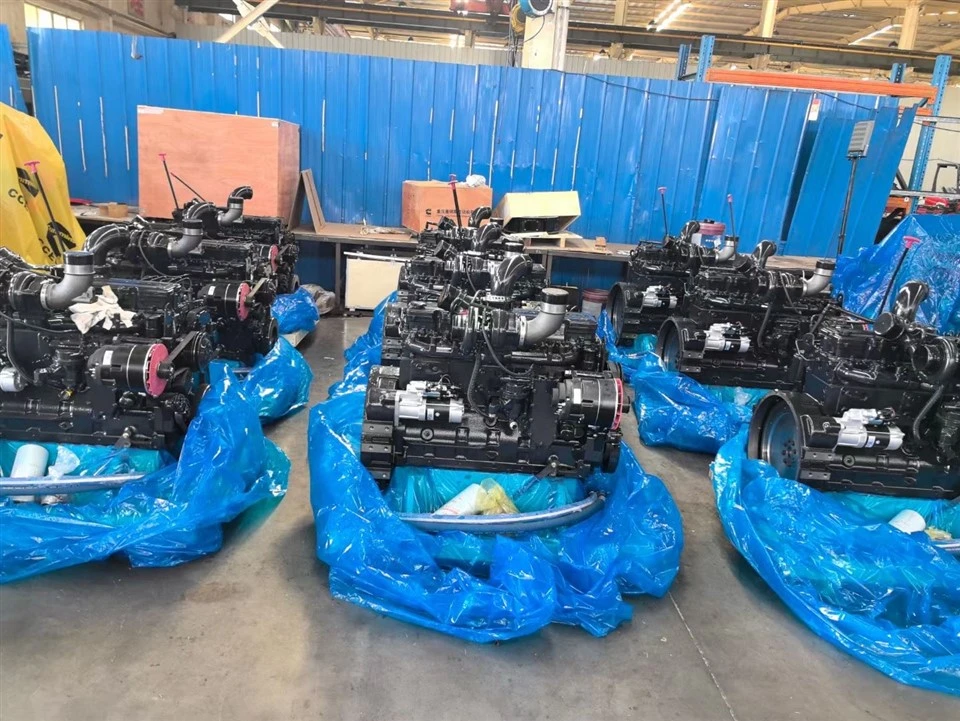

Cummins 6CTA8 3-M205 Marine Propulsion Cav

Cov ntaub ntawv dav dav ntawm Cummins 6CTA8.3-M205 Marine Propulsion Cav

Cav hom

Cummins6CTA8.3-M205

Hom

6 lub tog raj kheej hauv kab

Kev khiav tawm

83L

Bore & Stroke

114 × 135 hli

Qhov hnyav qhuav

6 04kg

Qhov Loj (L * W * H)

Center ntawm lub ntiajteb txawj nqus los ntawm pem hauv ntej lub ntsej muag ntawm block

427mm ua

Qhov nruab nrab ntawm lub ntiajteb txawj nqus saum crankshaft centerline

16 3mm

Cov ntaub ntawv technical ntawm Cummins 6CTA8.3-M205 Marine Propulsion Cav

Kev xav

Turbocharged & Dej Intercooled

Roj System

BYC PB Pump / R801 Tus Thawj Kav Tebchaws

Coolant kua muaj peev xwm-lub cav nkaus xwb

12,3 litre

Tsis siv neeg ceev

800 RPM

Max Tsis load ceev

2720 ​​rpm ib

Compression ratio

17.31

Piston Ceev

m/sec

Kev txiav txim tua hluav taws

1-5-3-6-2-4

Hnub Ua Haujlwm ntawm Cummins 6CTA8.3-M205 Marine Propulsion Cav

Rated Output/Speed

151KW/205HP/2328RPM TSI

Max tso zis / ceev

180KW/205HP/2200RPM TSI

Max torque / ceev

828N.m / 1500RPM

Zaus (HZ)

Roj noj / ntsuas ceev

203g/KW.h/1400RPM

Roj Consumption / standby tso zis

247 g/KW.h/2400RPM
